Appendix A
A.
B.

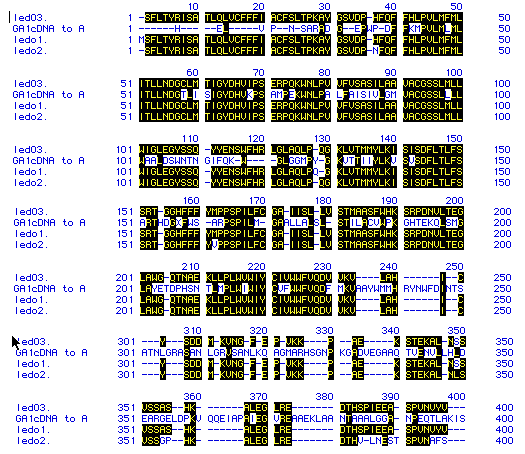

Figure 17. A. Alignment of GA1 (@373 a.a.) and the Leishmania donovania H+-ATPases. GA1 amino acids (@373) were aligned with the N terminus amino acids (661-974) from three different Leishmania donovania H+-ATPases (ledo 1-3) using the multiple sequence program of the MACDNAsis software package. Conserved amino acid sequences are highlighted in black. B. Percentage sequence similarity between three different Leishmania donovania amino acid sequences and GA1.
A.
B.

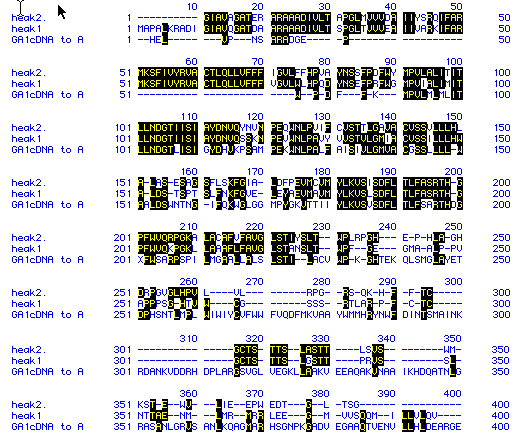

Figure 18. A. Alignment of GA1 (@373 a.a.) and the Heterosigma akashiwo H+-ATPases. GA1 amino acids (@373) were aligned with the N terminus amino acids (301-603, and 661-995) from two different Heterosigma akashiwo H+-ATPases (heak 1 and 2, respectively) using the multiple sequence program of the MACDNAsis software package. Conserved amino acid sequences are highlighted in black. B. Percentage sequence similarity between two different Heterosigma akashiwo amino acid sequences and GA1.
