This web page was created as an assignment for an undergraduate course at Davidson College.

Restriction Fragments

The following fragment sizes will be used to determine the correct orientation of the insert (Cherry et al., 2000).

IDH1

Restriction enzyme: EcoR V

Recognition sequence: GATATC

Plasmid: Cuts 16 bp from the insertion point

Insert: Cuts at bp 340

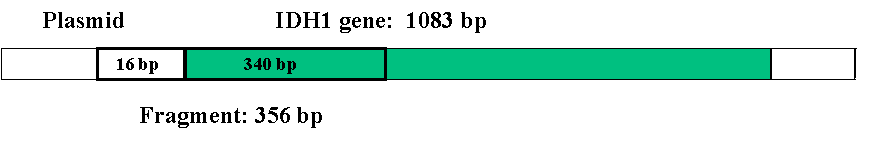

FORWARD:

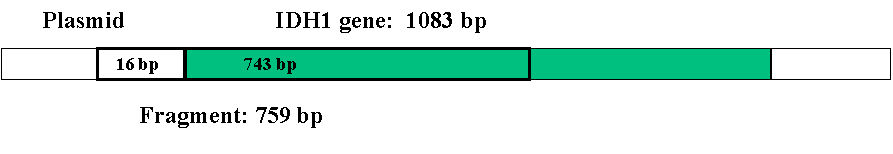

REVERSE:

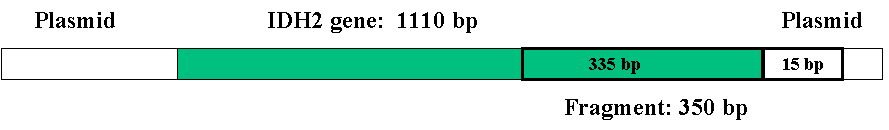

IDH2

Restriction enzyme: Bgl II

Recognition sequence: AGATCT

Plasmid: Cuts 15 bp from the insertion point

Insert: Cuts at bp 335

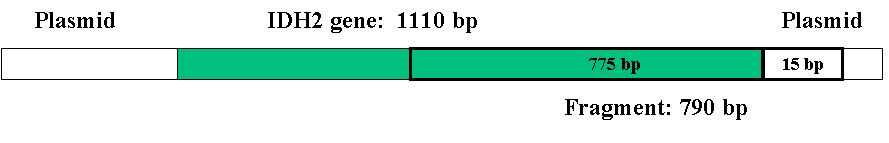

FORWARD:

REVERSE:

IDP1

Restriction enzyme: Bgl II

Recognition sequence: AGATCT

Plasmid: Cuts 15 bp from the insertion point

Insert: Cuts at bp 1208

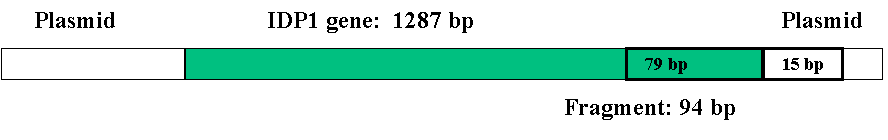

FORWARD:

REVERSE:

IDP2

Restriction enzyme: Bgl II

Recognition sequence: AGATCT

Plasmid: Cuts 15 bp from the insertion point

Insert: Cuts at bp 496

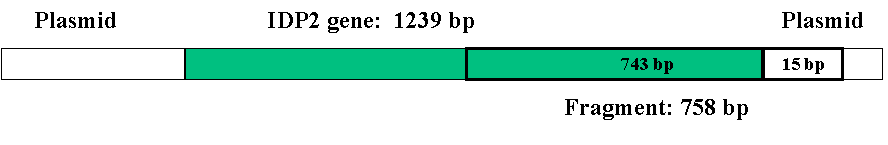

FORWARD:

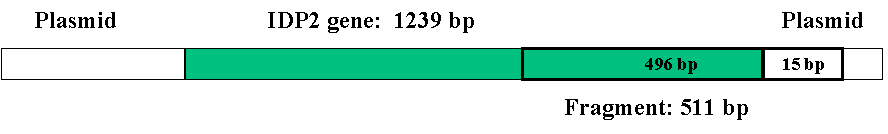

REVERSE:

IDP3

Restriction enzyme: Cla I and Bgl II

Recognition sequences: Bgl I -- AGATCT; Cla I -- ATCGAT

Plasmid: Bgl I cuts 15 bp from the insertion point

Insert: Cla I cuts at bp 768

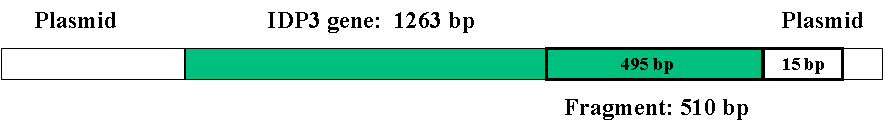

FORWARD:

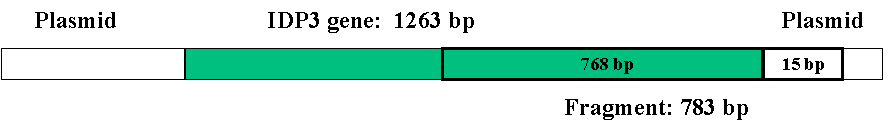

REVERSE:
