MacDNAsis of Hexokinase
This page was created as an assignment for an undergraduate class at Davidson College

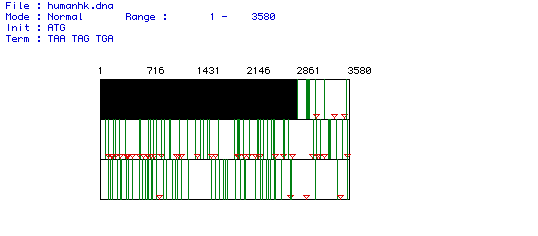

Open Reading Frame for Hexokinase

Molecular Weight 102497.74kD

Click here to see cDNA sequence for hexokinase

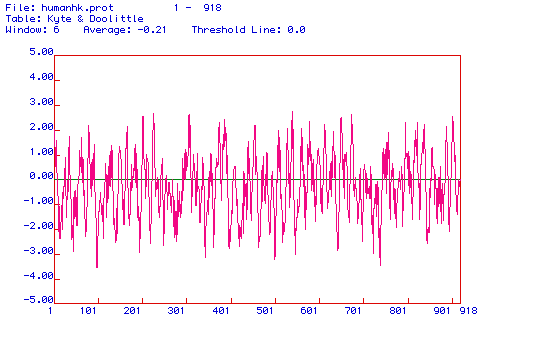

The plot indicates that the protein crosses the membrane several times, making it an integral membrane protein.



Anitgenicity plot. Linear sequences from 120 to 150, 250 to 290, and 620 to 650 might make the best peptide for generating a monoclonal antibody.They are the most hydrophilic.



Secondary structure of hexokinase

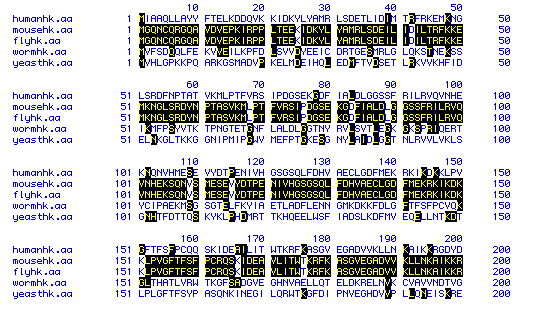

Multiple alignment of hexokinase sequences in five different species. Click on species name below to see protein sequence for each one.

Human (Homo sapiens)

Mouse (Mus musculus)

Fly (Drosophila melanogaster)

Worm (Schistosoma manson)

Yeast (Saccharomyces cerevisiea)

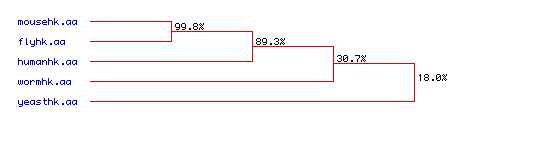

Phylogenic tree showing conservation of hexokinase across species. Click on species name above to see protein sequence for each one.



Click here to see results of Genbank Search on hexokinase
